S.R Ceramics - High Alumina Bricks, Bottom Pouring Sets (B.P. Sets), Fire Bricks, Insulation Bricks, Burner Blocks, Slabs, Fire Clay, Fire Crete, Accoset.

1. Fire Bricks & Tiles

Widely Used in :
Rolling Mills
Boilers
Furnaces
Glass industry
Concast Plants
Forging units
Auto parts industry
Hand tool Industry

Grade Available: 30%-80%, 55-S
Size Available: as per requirements

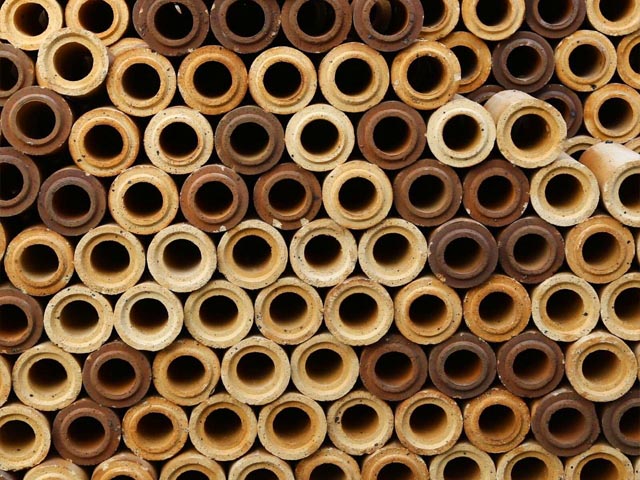

2. Nozzle:

Widely Used in :
Rolling Mills
Boilers
Furnaces
Glass industry
Concast Plants
Forging units
Auto parts industry
Hand tool Industry

Grade Available: 30%-80%
Size Available: as per requirements

3. Castable:

REFF-MAXX SET 50, REFF-MAXX FIRE CRETE, REFF-MAXX HA MORTAR
Widely Used in :
Rolling Mills
Boilers
Furnaces
Glass industry
Concast Plants
Forging units
Auto parts industry
Hand tool Industry

Grade Available: 30%-80%, 55-S
Size Available: as per requirements

4. Slabs, Half Rounds, BB, Arch Blocks

Widely Used in :
Rolling Mills
Boilers
Furnaces
Glass industry
Concast Plants
Forging units
Auto parts industry
Hand tool Industry

Grade Available: 30%-80%,
Size Available: as per requirements

5. B.P. Sets

Applications :
Furnaces
Concast Plants
Forging Units

Grade Available: 30%, 40%, 45%
Size Available: as per requirements

6. Special Sizes can be prepared on order basis.

Grade Available: 30%-80%, 55-S

TECHNICAL SPECIFICATION

Technical Data of Fire Brick

Brand Name	AL2O3% Min	Fe2O3% Max	P.C.E. (OC) Min	B.D. (Gm/ccs) Min	A.P.% Min	C.C.S. (Kgf/Cm2)Min	R.U.L. (Tac)Min	P.L.C. % Max	Application
SR-30	30	2	30	1.9	25	250	1300	1.0 at 1350c	Moderate heat duty waste heat installations stack & flue linings Annealing furnaces and as back up brick lining in boiler furnaces kiln etc
SR-HHD	35 - 37	2.1	30	2	25	300	1350	0.75 at 1350c	DO
SR-40	40	2.2	31	2.1	23	300	1400	0.5 at 1400c	DO
SR-45	45	2.4	32	2.2	22	350	1400	0.8 at 1400c	DO
SR-50	50	2.5	33	2.25 to 2.3	22	400	1420	1.0 at 1450c	DO
SR-60	60	3	34	2.5	20	450	1450	1.5 at 1450c	For Rotary kiln copper plant steel ladle electric ARC farnes.
SR-70	70	3.5	36	2.65	18	550	1470	1.5 at 1500c	DO
SR-60LF	60	2	34	2.4	20	450	1450	1.5 at 1450c	DO
SR-70LF	70	2.5	36	2.6	18	550	1470	1.5 at 1500c	DO
SR-80	80	3.2	37	2.85	16	650	1550	1.5 at 1550c	DO
Note :	1. Size Tolerance : 1.5% or 2 mm whichever is greater. 2. The Above Data are on Average Result Basis

Castables

Brand Name	Maximum Service Term.	C.C.S. at 110c	After Firing	AL2O3% Min	Fe2O3% Max
SR-Cast-40	1350	250	350	40	2
SR-Crete-60	1450	350	450	60	3
SR-Crete-70	1500	400	500	70	3.5
